Production Capabilities

We have potentially the UK's widest selection of composites manufacturing processes available in-house

To meet and exceed the varied challenges of our multi-sector clients we have built up a highly skilled team and invested in many of the latest advanced composite manufacturing technologies.

Collapsible content

Filament Winding

Continuous reinforcements, such as roving, are wound around a mandrel or core under tension, while being impregnated with a resin. Factors such as winding angle, fibre orientation, and layering of the fibres are each precisely controlled.

Vacuum Infusion / Bag Moulding / Vacuum bagging

A resin is drawn through a dry preform made of fibres / fabrics by means of a vacuum.

Resin Transfer Moulding (RTM), including High Pressure (HP-RTM)

Dry fibers / fabrics are placed in a closed mould, and then resin is introduced (various methods) under pressure to saturate the fibres and cure the composite structure.

Standard RTM, Vaccum Assisted (VA-RTM) and Compression (C-RTM) available.

CCP Gransden can also offer High Pressure RTM (HP-RTM); Used instead of standard RTM because it allows for the production of higher-performance and complex-shaped parts due to the increased pressure used to saturate the fibres and cure the composite structure.

Compression Moulding [Thermoplastic & Thermoset]

A matched male and female mould is employed. A measured amount of loading compound (fibre plus resin) is charged into the mould. A press, using heat and pressure, is used to cure the fibres and resin by closing the male and female halves of the mould. After the material is cured, the pressure is released and the part is ejected from the mould.

Injection Moulding

A thermoplastic or thermosetting material is heated and injected into a closed mold to form a solid object of the desired shape and properties.

Thermoforming

A thermoplastic composite material (usually a laminate) is heated to a pliable state, then shaped into the desired form using a mold.

Overmoulding

A polymer or resin is injected over an already existing substrate or part, to create a new layer or coating that enhances the original product. E.g. Combining thermoforming of pre-consolidated laminates with injection moulding compound

Single-Stage Overmoulding

In this single-stage process for overmoulding, both the thermoforming and over moulding injection processes occur simultaneously supporting sustainability, part reduction, and incorporation of ribs and net formed components. CCP Gransden has optimised this process.

Hand Lay-up / Wet Lay-up

The most widely used process for manufacturing composites worldwide. Fibre reinforcement and resin are manually placed and layered by hand.

Prepreg Lay-up

Akin to conventional Hand Lay-up, the basic difference being that when using prepreg the impregnation of the fibres is made prior to moulding.

Continuous Fibre Carbon 3D Printing

Robotically layering and curing liquid resin reinforced with continuous carbon fibers.

N.B. Small scale capacity at CCP Gransden. Suitable for small prototypes and low volume production.

Installation / Maintenance Repair and Overhaul (MRO)

Where required, CCP Gransden's team will travel to complete works at the desired location.

Supplementary & Supporting Processes

CCP Gransden has a dynamic facility. A full suite of supporting equipment ensures rapid adaptability in-house.

  • Clean Room
  • 5 Axis CNC
  • Waterjet Cutting
  • Fabric Cutting
  • Paint booth and finishing
  • Inspection

And more.

Sustainable Manufacturing

Our flexible facility can efficiently explore a wide variety of composites manufacturing options and select the optimum solution to support your sustainability goals.

We have experience with:

  • Life Cycle Analysis (LCA) of manufactured parts
  • Design for circularity / end-of-life considerations
  • Locally-sourced Materials
  • Bio-based Materials
  • Recycled Materials

And more.

...Did you know, greater than 45.5% of electric power used to run the CCP Gransden factory is generated from renewable sources located in Northern Ireland.

SPECIALIST EQUIPMENT:

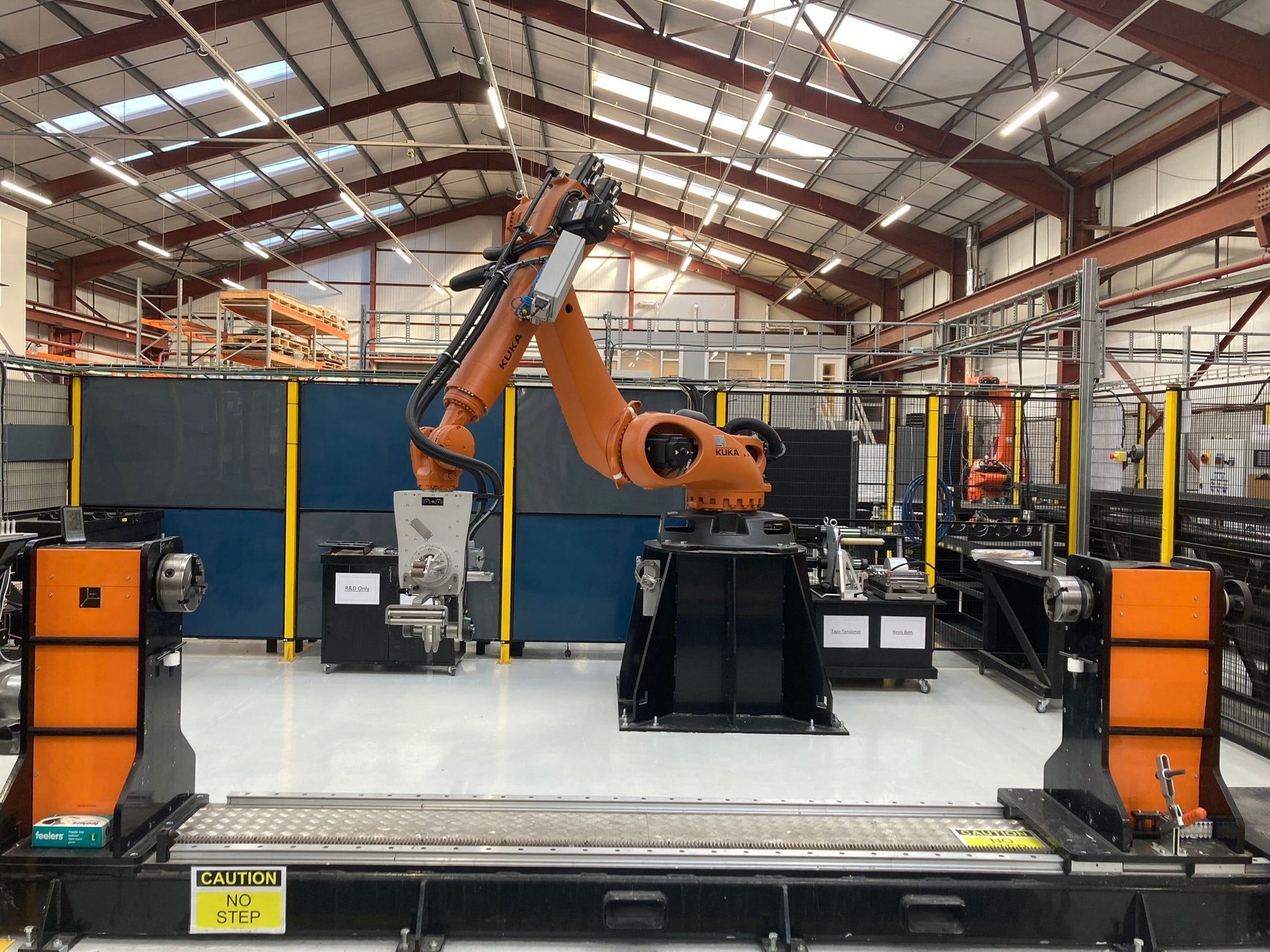

7-AXIS FILAMENT WINDING CELL

  • Dynamic 7-axis robotic filament winder with integrated programming software
  • Wet-winding and towpreg process available
  • Part size up to 4m length and 1m diameter (with potential to be expanded)
  • Symmetrical and asymmetrical cross-section achievable
  • Linear and non-linear sweeps achievable
  • Varying cross-section achievable
  • Full control over part wall thickness and fibre angles (including unidirectional in the load axis)
  • Extremely light, stiff components/assemblies
  • Low cycle times achievable
  • Multiple material configurations achievable
  • Supports metallic or composite insert joints, adhesive bonding or metallic fasteners
  • Can produce rocket motor casings, fuel systems, and propeller blades.
  • Can produce Type 3, type 4, and type 5 filament wound high-pressure vessels, for applications such as high-pressure hydrogen fuel tanks, rocket-propulsion systems, and gas storage.
Filament wound carbon fibre tubes

Specialist capability with one of the UK’s most advanced filament winding cells

SPECIALIST EQUIPMENT:

ADAPTIVE HIGH VOLUME MANUFACTURING CELL

Thermosets Compression Moulding, RTM, HPRTM

Thermoplastics Thermoforming, Overmoulding

  • Fully automated cell with press for high volume production of advanced composite components
  • 11000KN Press
  • Sliding Table; offering rapid tool changing
  • 6 Axis Robot
  • Infra-red Oven & Injection Moulding Unit
  • HP RTM Injection Unit
  • Industry 4.0 compatible; enabling a multitude of manufacturing parameters to be monitored and recorded for full component traceability
  • Full Automation; up to 100,000 parts per annum achievable for certain processes
  • Master tool with insert tool options can offer a lower cost of entry
  • Press-forming of high performance, pre-consolidated laminates including PEEK, PPS, PEI & Polyamides
  • Press moulding of SMC / BMC

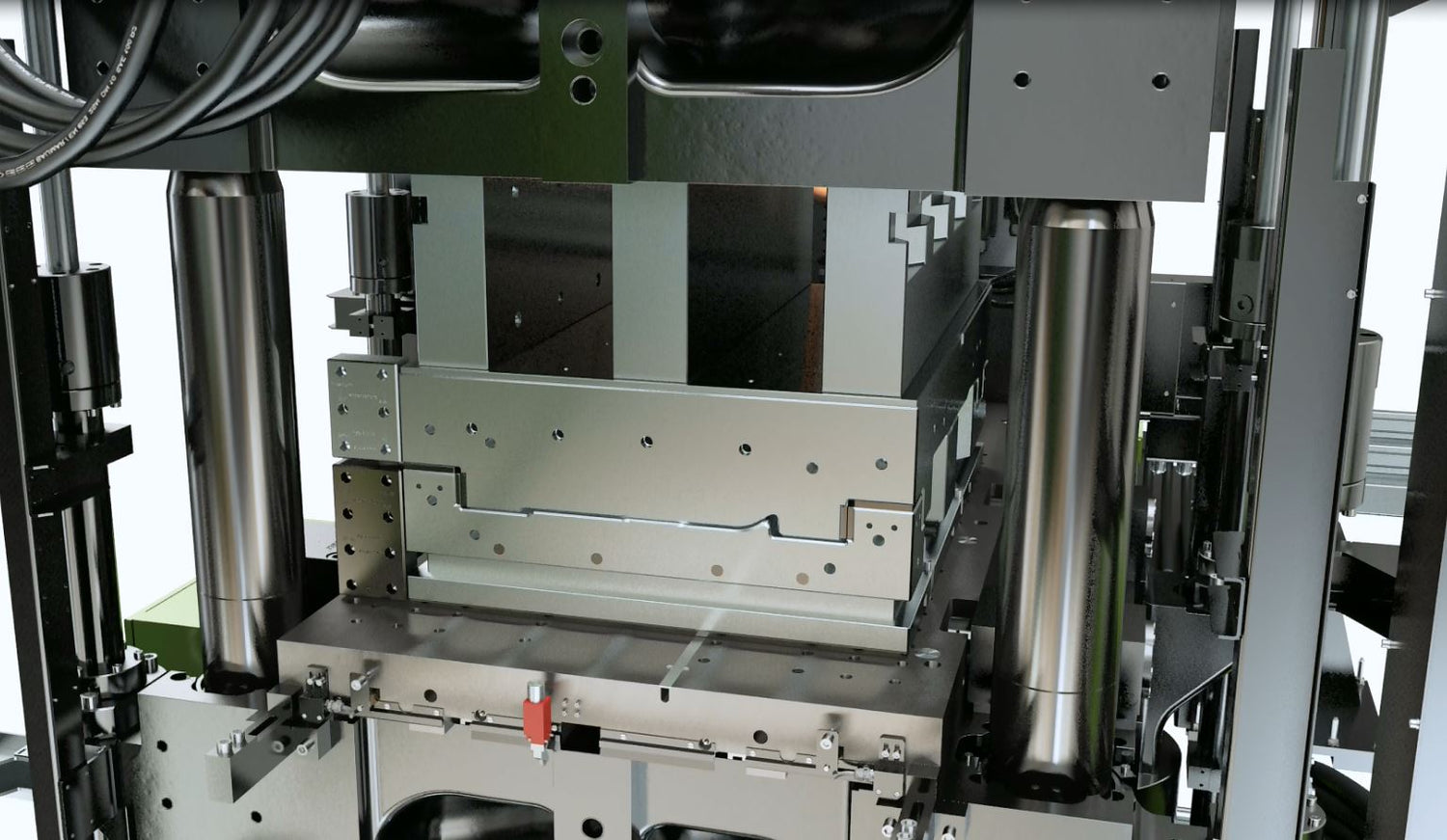

Engel Press for specialist composites manufacturing

The only machine of its kind currently owned by a private company in the UK

DYNAMIC FACILITY RAPID ADAPTABILITY IN-HOUSE

Specialist manufacturing facility which includes a range of advantageous in-house features such as;

  • Design and manufacture of composite tooling
  • Dedicated workspaces for hand fabrication of complex, bespoke structures
  • Structured assembly line; Experience producing technical defence parts with over 50 components ⇒ Zero quality issues ⇒ 100% delivered on-time ⇒ 100% right-first-time

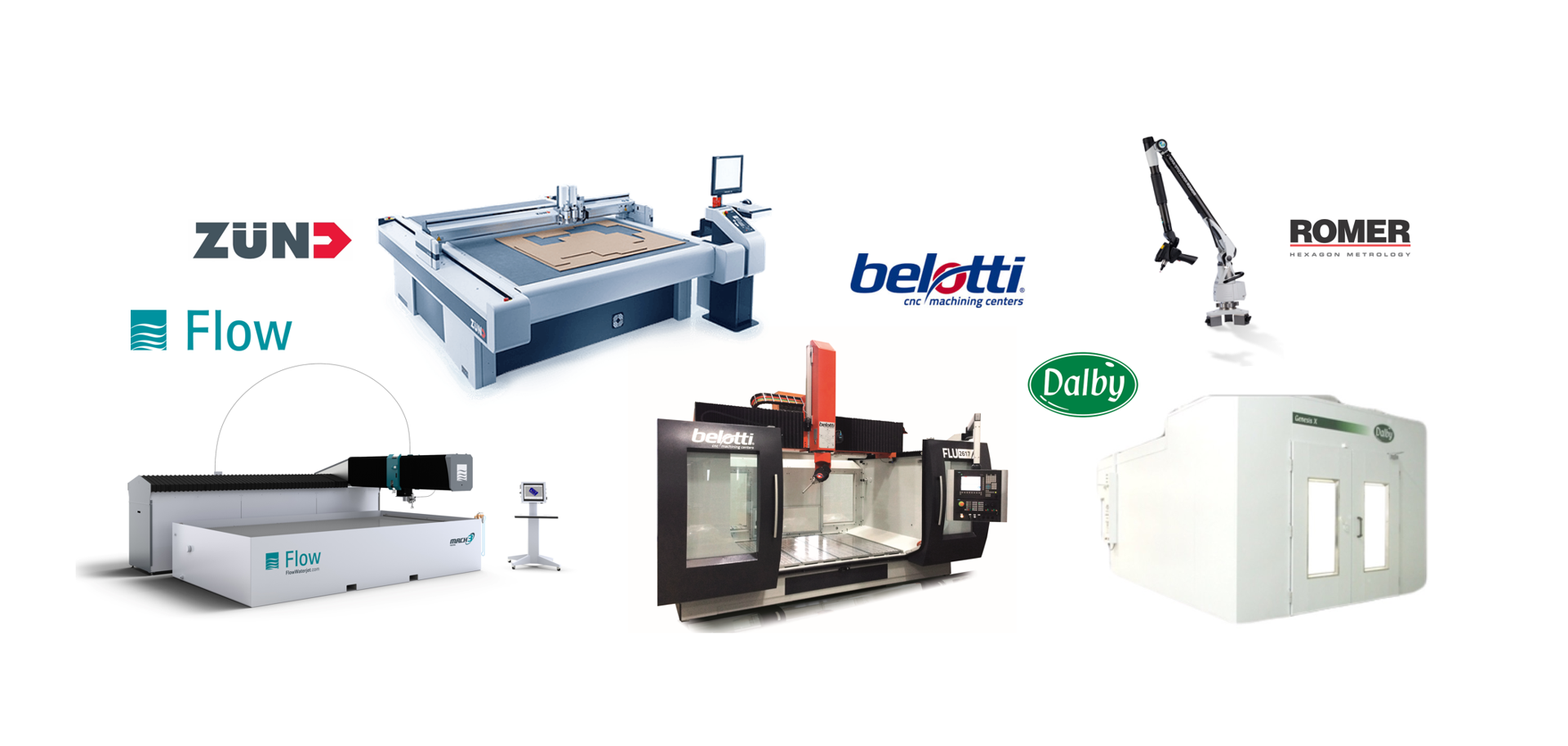

  • Belotti 5 Axis CNC
  • Flow Dynamic Waterjet
  • Zund Fabric cutter
  • Paint shop with Dalby GenesisX Paint booth
  • Small scale carbon fibre 3D printing
  • Hexagon Romer arm
  • Quality control space
  • Secure freezer / store / quarantine zones
  • Regularly scheduled reviews of lean 5S principles
  • AS9100 specification cleanliness upheld as standard

ON-LOCATION INSTALLATION AND MRO

Additionally, CCP Gransden can support with installation and MRO (maintenance, repair, and overhaul) on-location for larger projects. CCP Gransden has experience succesfully delivering solutions outside of the factory; whether its GRP repairs in Birmingham, or installation of bespoked parts in the Bahamas, our team can be relied upon.

Potentially the UK's widest selection of composites manufacturing processes available in-house
